Suppressor C24, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

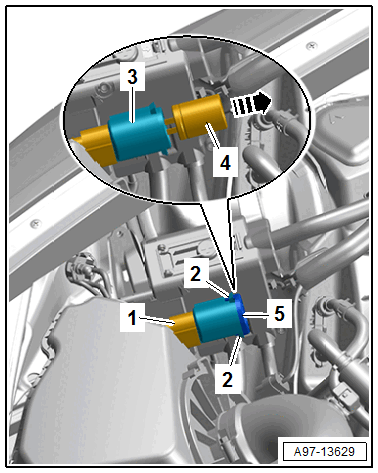

-- Disconnect the connector -1-.

GWWA97-13629Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -2-.

-- Remove the cap -5-.

-- Slide the suppressor -4- out of the housing -3- and remove it.
