Auxiliary Relay Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM .

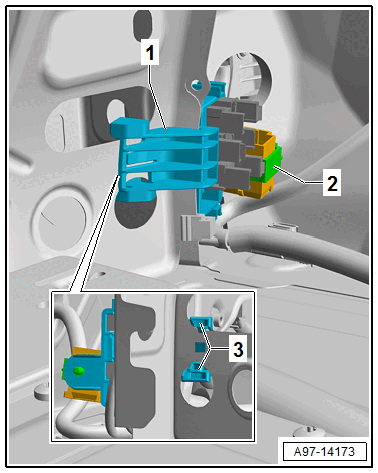

-- Release the retaining tabs -3- on the auxiliary relay panel -1- through the openings in the body panel.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the auxiliary relay panel -1- towards the front.

-- If installed, then remove the bracket -2- with the connector from the auxiliary relay panel -1-.

-- Release the clips -arrows-.

Fig 1: Identifying Relay Panel And Connector Station

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay panel -2- from the auxiliary relay panel -1-.
