Overview - Relay Panel, Instrument Panel, E-Boxes Engine Compartment

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

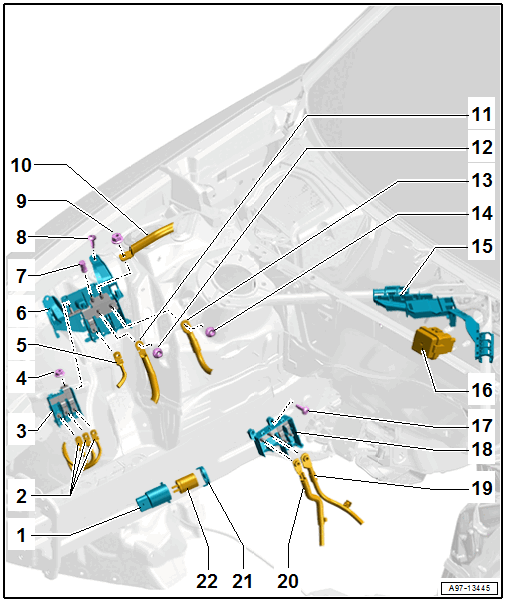

Fig 1: Component Location Overview - Relay Panels, Fuse Panels And E-Boxes, Engine Compartment

Courtesy of AUDI OF AMERICA, LLC

Housing
Wiring
- Allocation. Refer to Wiring Diagram.
- 7.5 Nm
Terminal 30a Wire Junction -TV3-
- Refer to TERMINAL 30A WIRE JUNCTION TV3, REMOVING AND INSTALLING
Nut
- 7.5 Nm
Line
- Allocation. Refer to Wiring Diagram.
- 7.5 Nm
Terminal 30 Wire Junction -TV2-
- Refer to TERMINAL 30 WIRE JUNCTION TV2, REMOVING AND INSTALLING
Positive Terminal
- Refer to Overview - Battery Jump Start Terminal .
Bolt
- Quantity: 2
- 3 Nm
Nut
- 18 Nm
Positive Cable
- From Battery -A-
Positive Cable
- To the Starter -B-
Nut
- 20 Nm
Positive Cable
- To the Auxiliary Battery -A1-
Nut
- 20 Nm
Mount
Relay and Fuse Panel 1 -SR1-
Bolt
- Quantity: 2
- 3 Nm
Terminal 40 Wire Junction -TV66-
- Refer to TERMINAL 40 WIRE JUNCTION TV66, REMOVING AND INSTALLING
Positive Cable
- From Battery, 48 V -A6-
- 7.5 Nm
Positive Cable
- To the Starter Generator -C29-
- 18 Nm
Cap
Suppressor -C24-
- Refer to SUPPRESSOR C24, REMOVING AND INSTALLING
