Overview - Relay Panel, Fuse Panel, E-Boxes, Left FOOTWELL

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

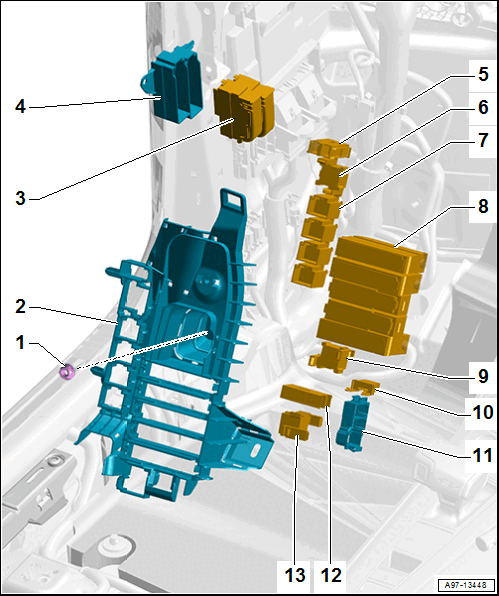

Fig 1: Component Location Overview - Relay Panels, Fuse Panels And E-Boxes, Left Footwell
GWWA97-13448Courtesy of AUDI OF AMERICA, LLC
  1. Nut
    • Quantity: 2
    • 3 Nm
  2. Relay and Fuse Panel 2 -SR2-
  3. Fuse Panel
    • Allocation. Refer to Wiring Diagram.
  4. Instrument Panel Fuse Panel
  5. Auxiliary Fuse Panel
  6. Relay Mount
    • Allocation. Refer to Wiring Diagram.
  7. Connectors
  8. Fuse Panel
  9. Relay Mount
    • Allocation. Refer to Wiring Diagram.
  10. Auxiliary Fuse Panel
  11. Auxiliary Mount
  12. Auxiliary Fuse Panel
  13. Relay Mount
    • Allocation. Refer to Wiring Diagram.
