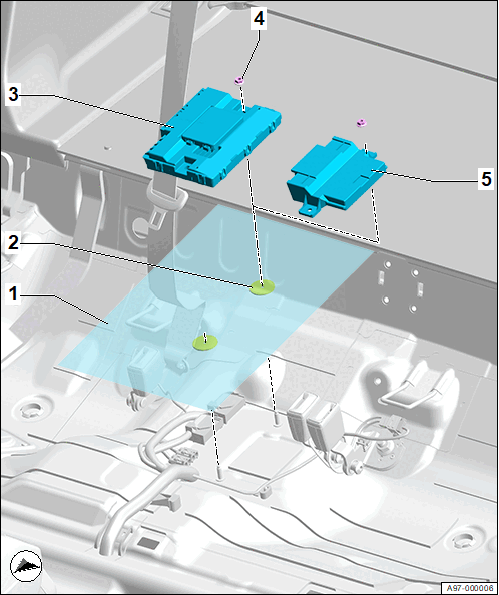

Overview - Data Bus On Board Diagnostic Interface
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Protective Cover
- Sealing Washer
- shared component with the protective cover
- Quantity: 2
- Data Bus On Board Diagnostic Interface -J533- - High
- With Telematics Emergency Battery -A16-
- Refer to Data Bus on Board Diagnostic Interface J533, Removing and Installing .
- Refer to appropriate Service Information .
- Nut
- Quantity: 2
- 5 Nm
- Data Bus On Board Diagnostic Interface -J533- - Low
