Data Bus On Board Diagnostic Interface J533, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

If the Data Bus on Board Diagnostic Interface - J533- is replaced, perform the test plan for replacing the control modules:

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .

-- Fold the insulation mat to the side over the data bus on board diagnostic interface. Separate it at the perforations if necessary.

Vehicles without protective cover

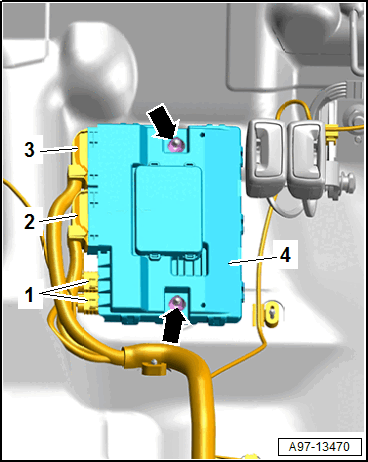

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Data Bus On Board Diagnostic Interface -J533- -4-.

-- Disconnect the connectors -1-, -2- and -3-.

Continuation for all vehicles

Vehicles with protective cover

-- Remove the nuts -arrow- through the opening in the protective cover.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Data Bus on Board Diagnostic Interface -J533- -6- from the protective cover.

-- Disconnect the connectors -3-, -4-, -5-.

-- Remove the protective cover from the threaded pins.

Continuation for all vehicles
