Component Location Overview - Connectors

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

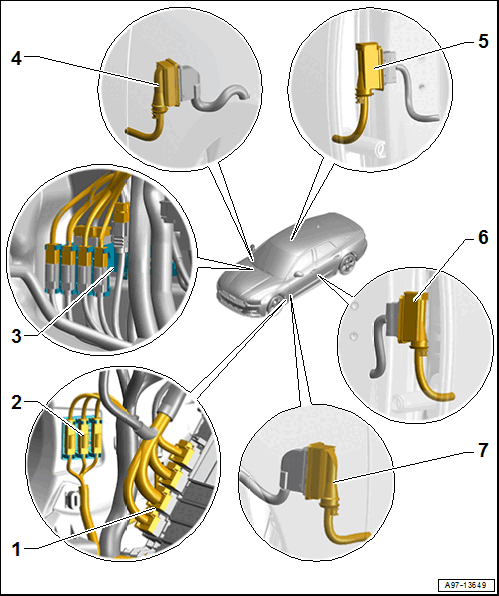

Fig 1: Component Location Overview - Connectors

Courtesy of AUDI OF AMERICA, LLC

Connector Station on Relay and Fuse Panel 2 -SR2-
- Refer to FRONT LEFT RELAY AND FUSE PANEL, REMOVING AND INSTALLING
Left A-Pillar Connector Station
- Refer to Left A-Pillar Connector Station, Removing and Installing .
Right A-Pillar Connector Station
- Refer to Right A-Pillar Connector Station, Removing and Installing .
Right Front Door Cut-Off Connector
- Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING
Right Rear Door Cut-Off Connector
- Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING
Left Rear Door Cut-Off Connector
- Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING
Left Front Door Cut-Off Connector
- Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING
