Underbody Trim Panels, Wheel Housing Liners, Side Sills And Lines, Checking For Damage And Proper Attachment
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Procedure :
-- Check all underbody trim panels and wheel housing liners for breaks and tears.
-- Check all underbody trim panels and wheel housing liners for proper attachment by hand, and also check for any missing fasteners.
-- Inspect the side sills for any deformations.
-- Check the lines and their connections in visible areas for proper attachment and damage.

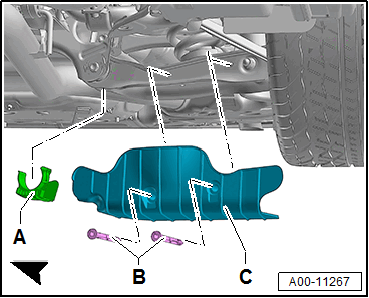

-- Check the stone chip protection -C- on the rear control arms for damage and secure fit.
-- Check the additional protection -A- on the rear control arms for damage and secure fit.
-- If there are defects, replace the damaged component or replace damaged or missing fasteners.
NOTE:
Additional protection -A- is only equipped on vehicles without a diagonal brace.
