Reflector, Removing And Installing, RS6, RS7 SPORTBACK: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

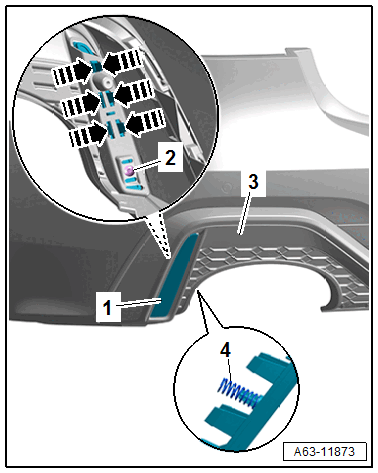

-- Remove the bolt -2-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Release the retainers in direction of -arrows-.
-- Pry out the reflector -1- from the bumper cover lower section -3-.
TIP:
The reflector is also pushed out through the spring force -4-.
