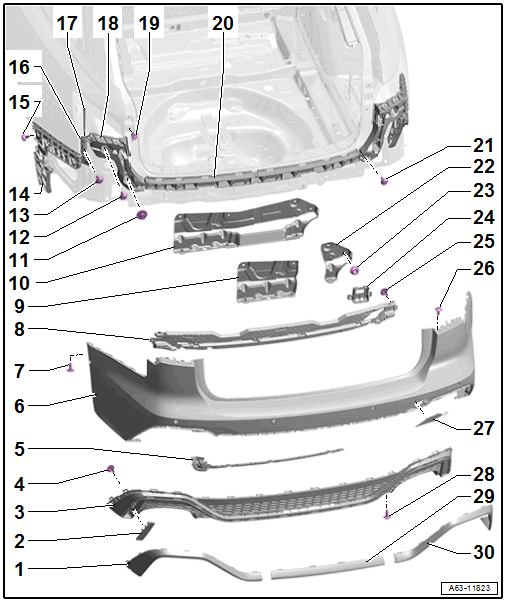

Overview - Bumper Cover, RS6

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Left Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER SIDE TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Bolt
- 2 Nm
Mount
- For the power rear lid opening sensor and power rear lid opening control module
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6 .
Bolt
- 2 Nm
Molded Foam Part
- Market-Specific Version
Left Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Mount
- Lower
- For equipment versions without trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- Tightening specification and sequence. Refer to Figure.
Bolt
- Tightening specification and sequence. Refer to Figure.
Bolt
- Quantity: 2
- Tightening specification and sequence. Refer to Figure.
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Bolt
- Quantity: 4
- Tightening specification and sequence. Refer to Figure.
Mount
- Upper
- For securing the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Locating Pin
- For attaching the rear bumper cover to the upper mount
Outer Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Clip
- For the bumper cover
Mount in the Center
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 6
- Tightening specification and sequence. Refer to Figure.
Right Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- 4 Nm
- Equipment versions without trailer hitch: quantity: 4
- Equipment versions with a trailer hitch, quantity: 2
Bracket
- For Garage Door Opener Control Module -J530-
Bolt
- 2 Nm
Bolt
- 3 Nm
Cover
- For the towing eye
Bolt
- 2 Nm
- Quantity: 3
Center Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Right Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER SIDE TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
