Overview - Bumper Cover, A6

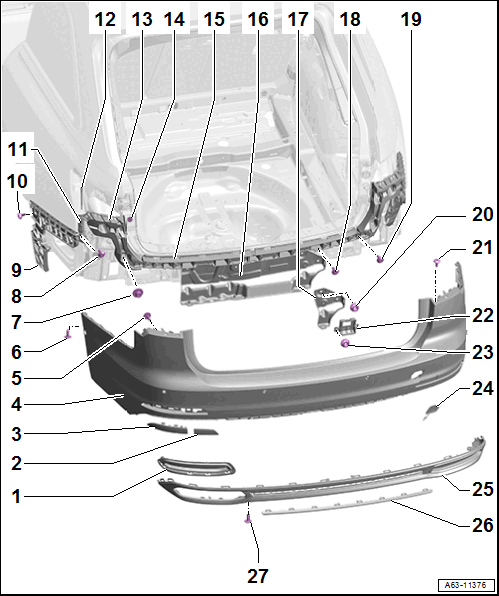

Fig 1: Overview - Bumper Cover, A6

Courtesy of AUDI OF AMERICA, LLC

1. Trim with Trim Molding
   • Removing and Installing. Refer to SIDE TRIM WITH BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A6 .
2. Small Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
3. Large Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
4. Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6 .
5. Bolt
   • 2 Nm
6. Bolt
   • 2 Nm
7. Bolt
   • Tightening specification and sequence. Refer to Fig 3.
8. Bolt
   • Tightening specification and sequence. Refer to Fig 4.
   • Quantity: 2
9. Mount
   • Side
   • For the bumper cover
   • Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
10. Bolt
    • Tightening specification and sequence. Refer to Fig 5.
    • Quantity: 4
11. Mount
    • For securing the bumper cover
    • Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
    • Upper
12. Locating Pin
    • For attaching the rear bumper cover to the upper mount
13. Outer Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
14. Clip
    • For the bumper cover
15. Mount in the Center
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
16. Mount
    • Lower
    • For equipment versions without trailer hitch
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
17. Mount
    • Lower
    • For equipment versions with trailer hitch
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
18. Bolt
    • Tightening specification and sequence. Refer to Fig 2.
    • Quantity: 4
19. Bolt
    • Tightening specification and sequence. Refer to Fig 2.
    • Quantity: 2
20. Nut
    • 4 Nm
    • Equipment versions without trailer hitch: quantity: 4
    • Equipment versions with a trailer hitch, quantity: 2
21. Bolt
    • 3 Nm
22. Bracket
    • For Garage Door Opener Control Module -J530-
23. Nut
    • 4 Nm
24. Cover
    • For the towing eye
25. Bumper Cover Lower Section
    • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A6 .
26. Trim Molding
    • For the bumper cover
    • Removing and Installing. Refer to CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A6 .
27. Bolt
    • 2 Nm
    • Quantity: 3

Bumper Cover Center Mount - Tightening Specification and Sequence

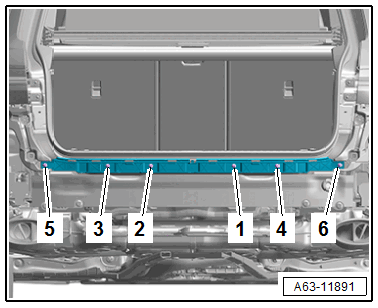

Fig 2: Bumper Cover Center Mount - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

Version 1:

-- Tighten bolts as follows:

• Sedan: tighten the bolts to 3 Nm in the sequence -1 to 4-.
• Avant: tighten the bolts in a -1 to 6- sequence to 3 Nm.

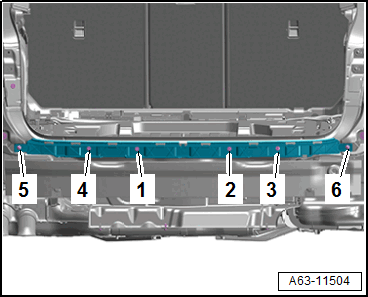

Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts as follows:

• Sedan: tighten the bolts to 3 Nm in the sequence -1 to 4-.
• Avant: tighten the bolts in a -1 to 6- sequence to 3 Nm.

Bumper Cover Outer Mount - Tightening Specification and Sequence

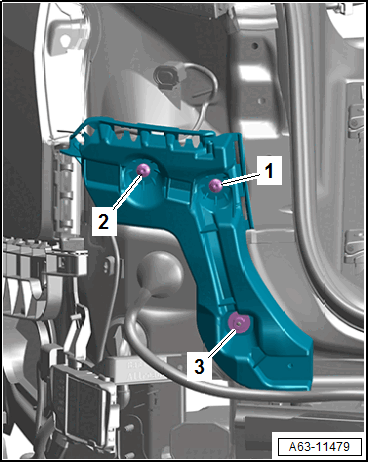

Fig 3: Bumper Cover Outer Mount - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts/bolts and nuts in the sequence -1, 2 and 3- to 3 Nm.

Bumper Cover Upper Mount - Tightening Specification and Sequence

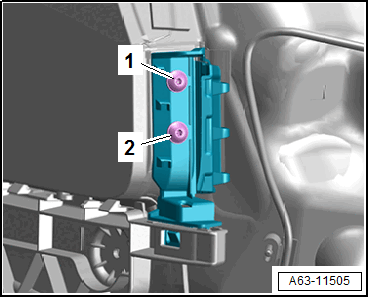

Fig 4: Bumper Cover Upper Mount - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in sequence -1 and 2- to 3 Nm.

Bumper Cover Side Mount - Tightening Specification and Sequence

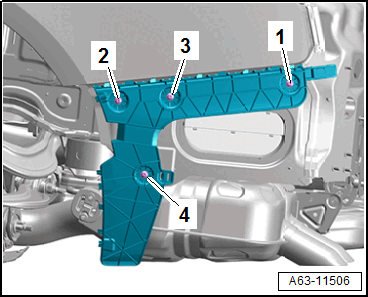

Fig 5: Bumper Cover Side Mount - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 3 Nm in the sequence -1 to 4-.
