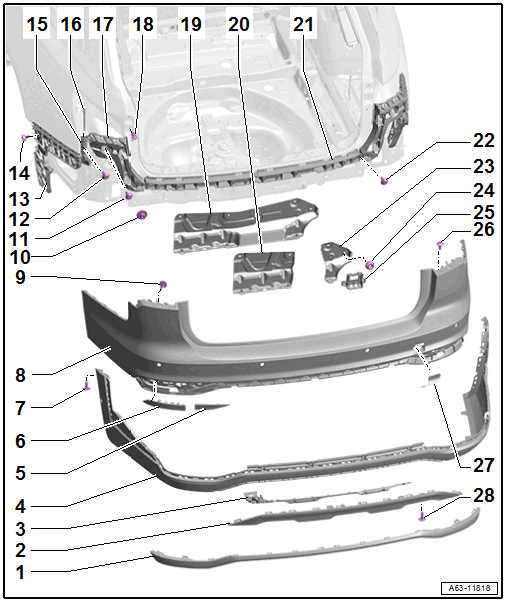

Overview - Bumper Cover, A6 ALLROAD

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Trim Molding
- For the bumper cover
- Removing and Installing. Refer to CENTER BUMPER TRIM MOLDING, REMOVING AND INSTALLING, A6 ALLROAD .
Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
Mount
- For the power rear lid opening sensor and power rear lid opening control module
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A6 ALLROAD .
Small Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
Large Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
Bolt
- 2 Nm
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6 .
Bolt
- 2 Nm
Nut
- Tightening specification and sequence. Refer to Figure.
Bolt
- Tightening specification and sequence. Refer to Figure.
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 2
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
Mount
- Upper
- For securing the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Locating Pin
- For attaching the rear bumper cover to the upper mount
Outer Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Clip
- For the bumper cover
Mount
- Lower
- For equipment versions without trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Left Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Mount in the Center
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 6
Right Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- 4 Nm
- Equipment versions without trailer hitch: quantity: 4
- Equipment versions with a trailer hitch, quantity: 2
Bracket
- For Garage Door Opener Control Module -J530-
Bolt
- 3 Nm
Cover
- For the towing eye
Bolt
- 2 Nm
- Quantity: 3
