Impact Guard, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

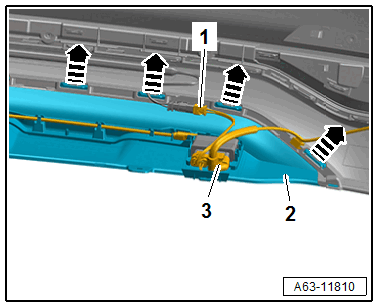

-- Remove the bolts -arrows- on the lower section of the bumper cover.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connectors -1 and 3-, if applicable.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Release the retainers in direction of -arrows-.
-- Remove the impact guard -2-.
