Center Bumper Cover Trim Molding, Removing And Installing, RS6, RS7 SPORTBACK: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .

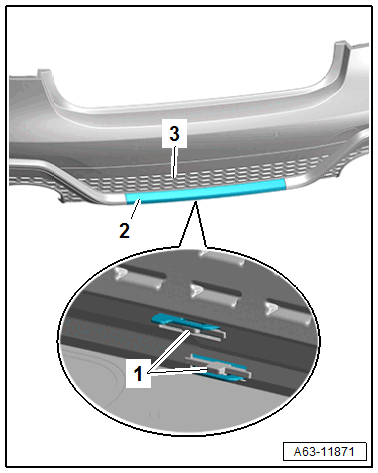

-- Release the catches -1- and remove the trim molding -2- from the lower section of the bumper cover -3-.

GWWA63-11871Courtesy of AUDI OF AMERICA, LLC
