Bumper Cover Side Trim Molding, Removing And Installing, RS6, RS7 SPORTBACK: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the trim molding for the center bumper cover. Refer to CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .

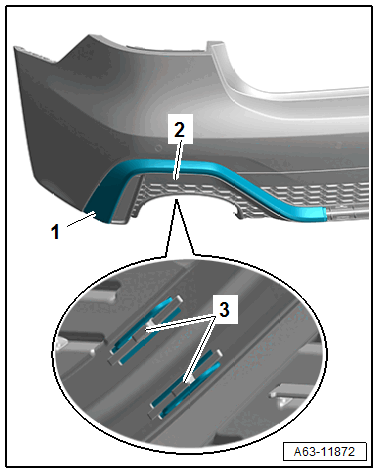

-- Release the catches -3- and remove the trim molding -1- from the lower section of the bumper cover -2-.

GWWA63-11872Courtesy of AUDI OF AMERICA, LLC
