Impact Guard, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 .
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 ALLROAD .

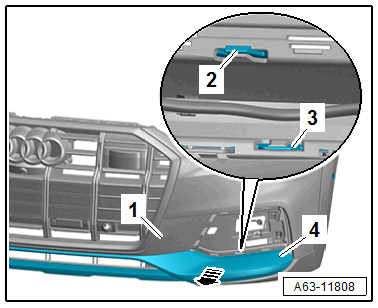

-- Release the catches -2 and 3- and remove the impact guard -4- toward the front from the bumper cover -1-.
