Side Air Intake Grille, Removing And Installing, RS6, RS7 SPORTBACK: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

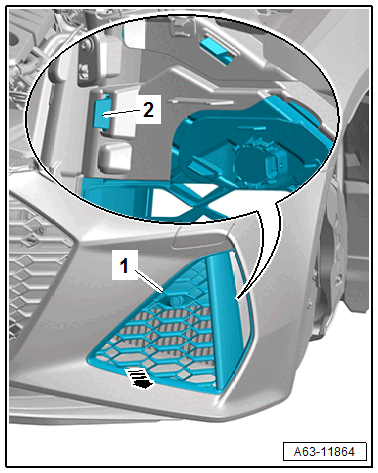

-- Remove the air intake grille -1- on the inside from the bumper cover in direction of -arrow-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector.
-- Reach with a hand between the air duct and the bumper and release the catch -2-.
-- Remove the air intake grille.
