Ionizer Control Module -J897-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Infotainment system display. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

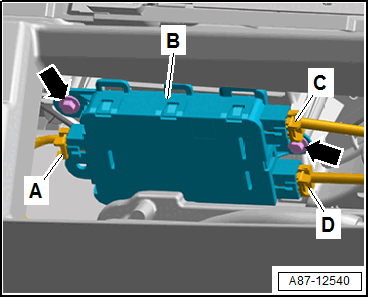

-- Remove the bolts -arrows-.

GWWA87-12540Courtesy of AUDI OF AMERICA, LLC

-- Remove the Ionizer Control Module -J897- -B- and disconnect the connectors -A, C and D-.
