Fragrance System Hoses, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the driver side storage compartment. Refer to OVERVIEW - INSTRUMENT PANEL COVER, DRIVER SIDE .

Hose to the Driver Side Air Duct:

Courtesy of AUDI OF AMERICA, LLC

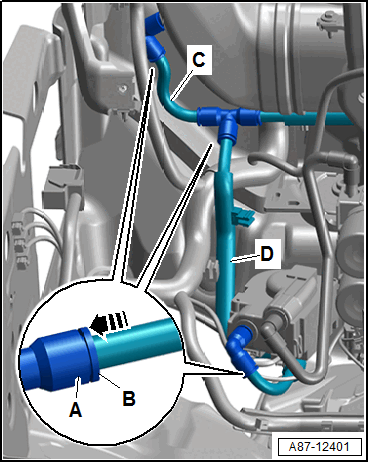

-- Remove the hose -C- from the connector coupling -A- by pushing the pull release -B- into the connector coupling -arrow-.

Hose to Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686- :

-- Remove the hose -D- from the connector coupling -A- by pushing the pull release -B- into the connector coupling -arrow-.

-- Guide out the hose carefully and remove.

Hose to the Front Passenger Side Air Duct:

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Equipped on some models: remove the windshield projection head up display control module. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .

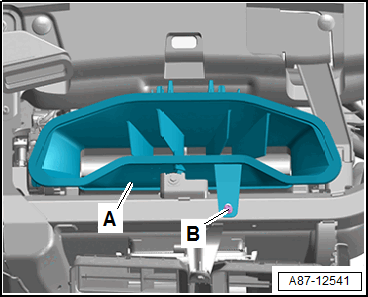

-- Remove the expanding rivet -B-, free up the air duct -A- and remove.

Courtesy of AUDI OF AMERICA, LLC

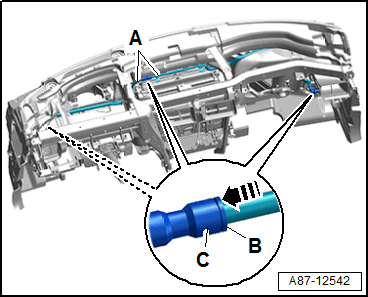

-- Remove the hose -A- from the connector coupling -C- by pushing the pull release -B- into the connector coupling -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide out the hose carefully and remove.
