Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

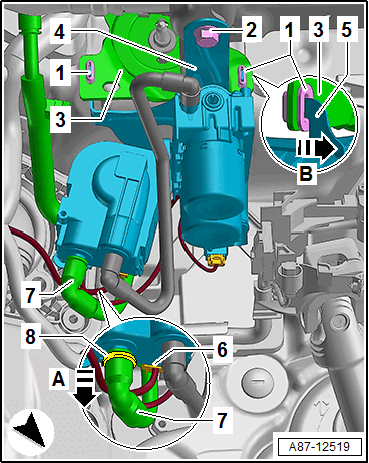

-- Check the plug -1- for correct seating in the bracket -3-.

-- If the Fragrance System Functional Unit -GX43- is replaced, the basic setting must be performed for the Fragrance Diffuser System Actuator -V687-.

Procedure

-- Connect the Vehicle Diagnostic Tester.

-- Select the Diagnostic  mode and start the diagnosis.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Diagnostic-capable systems
• 0009 - Electronic central electric - J519
• 0009 - Central electric electronic, functions
• 0009 - Basic setting for climate control functions
• → Basic setting 6, program the end stops for Fragrance Diffuser System Actuator -V687-

-- If the fragrance containers are replaced, then they must also be programmed:

• A6. Refer to the appropriate service information .
