Fragrance Diffuser System Actuator -V687-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Fragrance System Functional Unit -GX43-, but do not disconnect it from the bracket. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .

-- Remove the connector -5-.

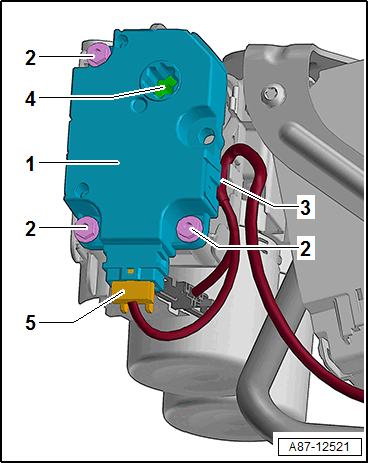

GWWA87-12521Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Remove the Fragrance Diffuser System Actuator -V687- -1- while counterholding the shaft -4-.
