Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Fragrance System Functional Unit -GX43-, but do not disconnect it from the bracket. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .

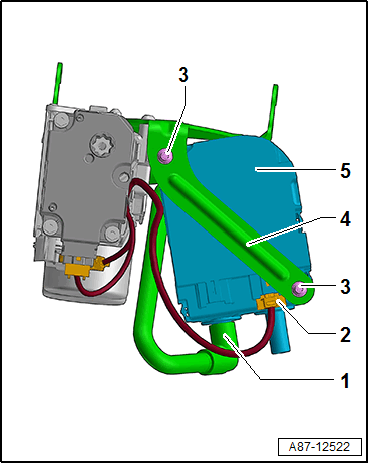

-- Remove the connector -2-.
-- Remove the hose -1- from the Air Freshening System Control Module -J1101- -5-.
-- Remove the bolts -3- and the Air Freshening System Control Module -J1101- -5-.
