Front Passenger Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.
Continuation for All Vehicles
-- Switch the ignition off.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

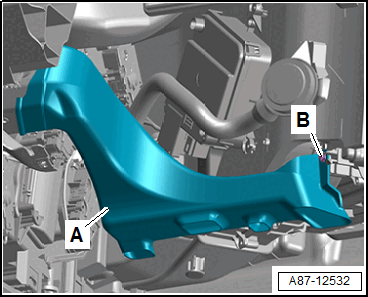

-- Remove the bolt -B-.
-- Equipped on some models: remove the knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
-- Remove the footwell vent -A- from the heater and A/C unit.
