Thermal Management Control Module -J1024-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.
-- Switch the ignition off.
-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM / LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

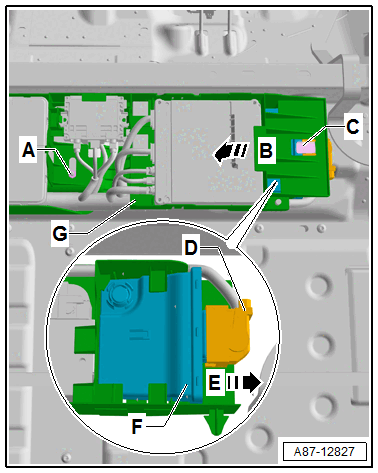

-- Remove the bolt -A- and lift the rack direction of -arrow B-.
-- Release the retainer -C- and remove the Thermal Management Control Module - J1024- -F- in the direction of -arrow E- from the rack.
-- Disconnect the connector -D-.
