Coolant Change-Over Valve 2 -N633-, REMOVING AND INSTALLING, AUDI A6/A7: Removing

WARNING: This page is about a different car, the 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left bumper cover and air intake grille end plate. Refer to BUMPER COVER, REMOVING AND INSTALLING .

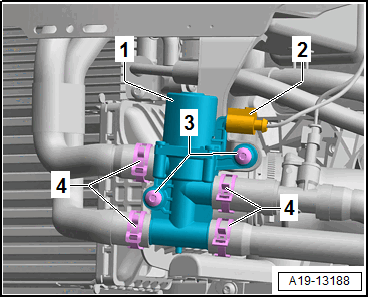

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the threaded connections -3-.

CAUTION:

Collecting coolant and determining volumes.

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the hose clamps -4-, then clamp off the coolant hoses with the Hose Clamps - Up To 25mm:3094 and remove them.

-- Remove the bolts -3- and remove the Coolant Change-Over Valve 2 -N633- -item 1-.
