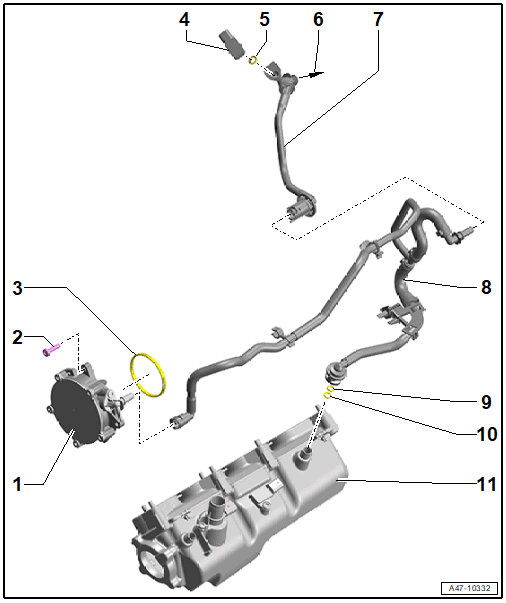

Overview - Vacuum Pump, 4.0L TFSI Engine
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Vacuum Pump
- Bolt
- 9 Nm
- Seal
- Replace after removing
- Vacuum Sensor -G608-
- O-Ring
- Cannot be replaced separately
- If damaged, replace the Vacuum Sensor -G608-
- To the Brake Booster
- Vacuum Line
- With integrated check valve; cannot be replaced separately
- Refer to CHECK VALVE, CHECKING
- Refer to CHECK VALVE, REMOVING AND INSTALLING, WITH VACUUM LINE IN PLENUM CHAMBER
- Vacuum Line
- O-Ring
- Replace after removing
- Blue
- O-Ring
- Replace after removing
- Black
- Intake Manifold
