Brake Fluid Level Warning Switch -F34-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

RHD vehicles:

-- Remove the tower brace. Refer to appropriate Servcie Information .

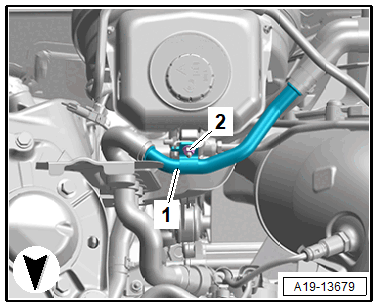

-- Remove the nut -2- and push the coolant pipe -1- to the side.

Courtesy of AUDI OF AMERICA, LLC

Equipment Version with Protective Plate:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-. (shown on a vehicle with vacuum brake booster)

-- RHD: remove the coolant pipe bracket.

-- Remove the protective plate -1-.

Warning Switch, Version 1:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Release the catch in direction of -arrow- and remove the Brake Fluid Level Warning Switch -F34- from the brake fluid reservoir.

Warning Switch, Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Release the catch in direction of -arrow- and remove the Brake Fluid Level Warning Switch -F34- from the brake fluid reservoir.
