Starter, Removing And Installing, 2.0L TFSI (0K0 0K4), Dual Clutch Transmission: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Free up the wiring harness -arrow-.
-- Remove the nut -2- and the bolt -3-.
-- Free up the coolant line -1-.

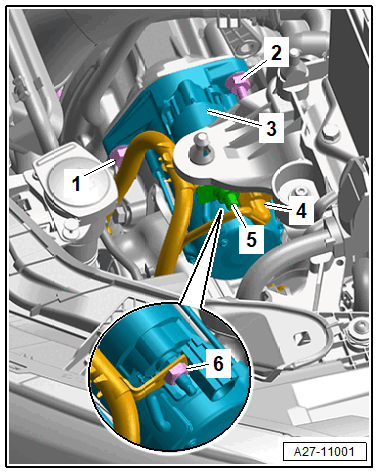

-- Disconnect the connector -4- by sliding the retainer toward the rear and pressing the release downward.
-- Release the retainer and press off the cap -5-.
-- Remove the nut -6- and remove the terminal 30/B+ wire from the starter.
-- Remove the bolts -1 and 2- and remove the starter -3- upward.
