Brake Caliper, Removing And Installing, Four-Piston Brake: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the affected front wheel. Refer to WHEELS AND TIRES .

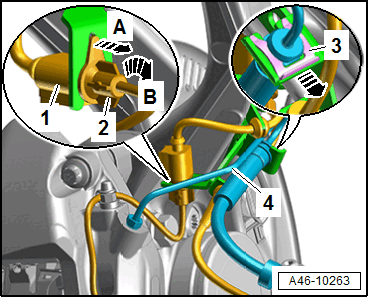

-- Disconnect the connector -1- for the brake pad wear indicator.

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector -2- for the brake pad wear indicator from its bracket in direction of -arrow A- while turning it 90° at the same time in direction of -arrow B-.

-- Free up the brake hose -4- on the bracket by removing the clamp -3- -arrow-.

TIP:

Courtesy of AUDI OF AMERICA, LLC

For easier removal of the brake caliper from the brake rotor, push the brake pad -3- back slightly with suitable pliers -1- as shown (example image).
To prevent damage to the paint coat on the brake caliper, place a piece of rubber -2- between the pliers and brake caliper.

-- Remove brake caliper bolts -1-.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake caliper.

CAUTION:

There is a risk of damaging the brake hose due to the weight of the brake caliper.

- Never let the brake caliper hang on the brake hose.

-- Hang the brake caliper using a suitable wire.

CAUTION:

There is a risk of damaging the brake caliper piston if handled incorrectly.

- Never activate the brakes if the brake caliper is removed.
