Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- For vehicles without a high-voltage system (0K0/0K4), remove the rear panel sill frame. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .

-- For vehicles with a high-voltage system (0K3), remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

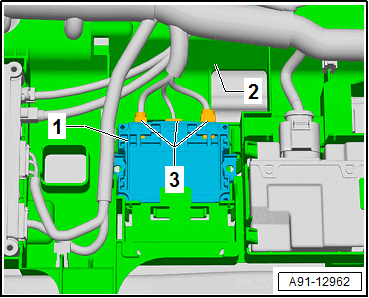

The Cellular Telephone Amplifier -R86- -1- is locked into place in the rack -2-.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disengage the Parking Heater Radio Receiver -R64- from the rack (Parking Heater Radio Receiver -R64- is over the Cellular Telephone Amplifier -R86-). Does not apply to 0K3.

-- Press the catches and pry out the Cellular Telephone Amplifier -R86- -1-.

-- Release and disconnect the connectors -3- from the Cellular Telephone Amplifier -R86- -1-.
