Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING: Notes

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Cellular Telephone Amplifier -R86- -8- is located at the front of the luggage compartment in the rack.

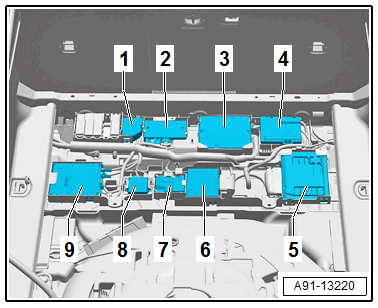

Rack on vehicles without high-voltage system, 0K0/0K4

Fig 1: Rack on vehicles without high-voltage system, 0K0/0K4

Courtesy of AUDI OF AMERICA, LLC

Rear Spoiler Control Module -J223-
Towing Recognition Control Module -J345-
Comfort System Central Control Module -J393-
Wire Junction -TV1-
Differential Lock Control Module -J187-
Windshield Defogger Control Module -J505-
Engine Sound Generator Control Module -J943-
Cellular Telephone Amplifier -R86-
Control Module for Emergency Call Module and Communication Unit -J949-

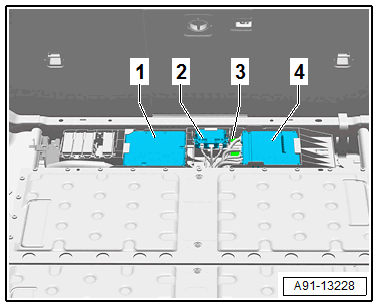

Rack on vehicles with high-voltage system, 0K3

Fig 2: Rack on vehicles with high-voltage system, 0K3

Courtesy of AUDI OF AMERICA, LLC

Comfort System Central Control Module -J393-
Cellular Telephone Amplifier -R86-
Towing Recognition Control Module -J345-
Control Module for Emergency Call Module and Communication Unit -J949-
