Subwoofer -R211-, REMOVING AND INSTALLING, 9VD/9VS, HYBRID VEHICLES M-HEV (0K4): Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the luggage compartment floor covering.

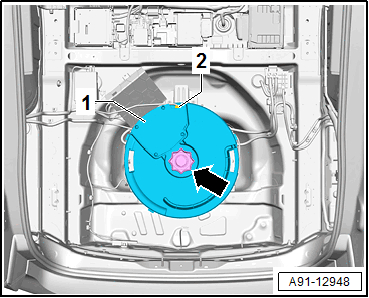

-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.
-- Remove the hand wheel -arrow- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward and out of the spare tire well.
