Overview - Sound System, Premium Sound System (9VS), Through My 2020

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Premium Sound System consists of the following components:

One loud speaker on the left side, center and right side of the instrument panel
One speaker in the left and right A-pillars
Two speakers in the left and right front doors, RX2/RX3
Two speakers in the left and right rear doors
One speaker in the left and right D-pillars, A7 Sportback / A6 Avant
One speaker on the left and right side of the rear shelf, A6 sedan
Subwoofer -R211- (with integrated Dual Subwoofer Speaker 1 -R298- / Dual Subwoofer Speaker 2 -R299-) in the luggage compartment floor, 0K4/in the luggage compartment on the right, 0K0/in the rear luggage compartment, 0K3
Digital Sound System Control Module -J525- in luggage compartment on left rear side

Courtesy of AUDI OF AMERICA, LLC

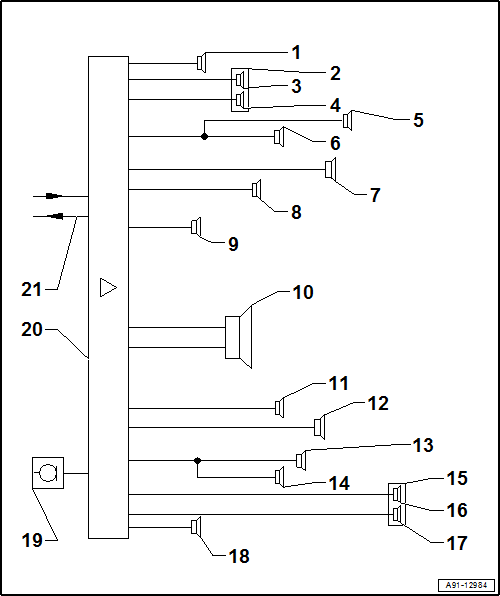

Left Front Midrange Speaker 2 -R276- in Left A-Pillar
Left Front Door Speaker -RX2- in Left Front Door
Left Front Midrange Speaker -R103- in Left Front Door
Left Front Bass Speaker -R21- in the Bottom of the Left Front Door
Left Rear Treble Speaker -R14- in the Left Rear Door Trim Panel
Left Rear Bass Speaker -R15- in the Bottom of the Left Rear Door
Left Effects Speaker -R209- in Left D-Pillar / Rear Shelf
Left Front Treble Speaker -R20- in the Instrument Panel on the Left Side
Center Speaker -R208- in the Center Instrument Panel
Subwoofer -R211- in the Luggage Compartment Floor/in the Luggage Compartment on the Right/in the Luggage Compartment Rear
- With integrated Dual Subwoofer Speaker 1 -R298- / Dual Subwoofer Speaker 2 -R299-
Right Front Treble Speaker -R22- in Instrument Panel on the Right Side
Right Effects Speaker -R210- in Right D-Pillar / Rear Shelf
Right Rear Bass Speaker -R17- in the Bottom of the Right Rear Door
Right Rear Treble Speaker -R16- in the Right Rear Door Trim Panel
Right Front Door Speaker -RX3- in Right Front Door
Right Front Bass Speaker -R23- in the Bottom of the Right Front Door
Right Front Midrange Speaker -R104- in Right Front Door
Right Front Midrange Speaker 2 -R277- in Right A-Pillar
Interior Microphone -R74- in Front Roof Module -WX3-
Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side
MOST Bus
