The Premium Sound System consists of the following components:

One loud speaker on the left side, center and right side of the instrument panel
One speaker in the left and right A-pillars
Two speakers in the left and right front doors, RX2/RX3
Two speakers in the left and right rear doors
One speaker in the left and right D-pillars, A7 Sportback / A6 Avant
One speaker on the left and right side of the rear shelf, A6 sedan
Subwoofer -R211- (with integrated Dual Subwoofer Speaker 1 -R298- / Dual Subwoofer Speaker 2 -R299-) in the luggage compartment floor, 0K4/in the luggage compartment on the right, 0K0/in the rear luggage compartment, 0K3
Digital Sound System Control Module -J525- in luggage compartment on left rear side
Information Electronics Control Module 1 -J794- behind the glove compartment

Courtesy of AUDI OF AMERICA, LLC

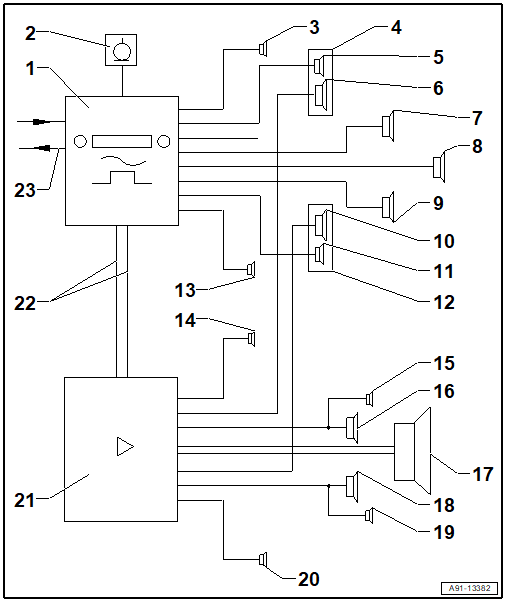

Information Electronics Control Module 1 -J794- Behind the Glove Compartment
Interior Microphone -R74- in Front Roof Module -WX3-
Left Front Treble Speaker -R20- in the Instrument Panel on the Left Side
Left Front Door Speaker -RX2- in Left Front Door
Left Front Midrange Speaker -R103- in Left Front Door
Left Front Bass Speaker -R21- in the Bottom of the Left Front Door
Left Effects Speaker -R209- in Left D-pillar / Rear Shelf
Center Speaker -R208- in the Center Instrument Panel
Right Effects Speaker -R210- in Right D-Pillar / Rear Shelf
Right Front Bass Speaker -R23- in the Bottom of the Right Front Door
Right Front Midrange Speaker -R104- in Right Front Door
Right Front Door Speaker -RX3- in Right Front Door
Right Front Treble Speaker -R22- in Instrument Panel on the Right Side
Left Front Treble Speaker 2 -R220- in the Left A-Pillar
Left Rear Treble Speaker -R14- in the Left Rear Door Trim Panel
Left Rear Bass Speaker -R15- in the Bottom of the Left Rear Door
Subwoofer -R211- in the Luggage Compartment Floor/in the Luggage Compartment on the Right/in the Luggage Compartment Rear
- With integrated Dual Subwoofer Speaker 1 -R298- / Dual Subwoofer Speaker 2 -R299-
Right Rear Bass Speaker -R17- in the Bottom of the Right Rear Door
Right Rear Treble Speaker -R16- in the Right Rear Door Trim Panel
Right Front Treble Speaker 2 -R221- in the Right A-Pillar
Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side
Data Bus Wires for Audio Bus
MOST Bus
