Overview - Sound System, Advanced Sound System (8RF), From My 2021

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Advanced Sound System consists of the following components:

One retractable speaker on the left and right side of the instrument panel
Two speakers in the center of the instrument panel
One speaker in the left and right A-pillars
Two speakers in the left and right front doors, RX2/RX3
Two speakers in the left and right rear doors
One speaker in the left and right D-pillars, A7 Sportback / A6 Avant
One speaker on the left and right side of the rear shelf, A6 sedan
One speaker in the right and left rear of the roof
Subwoofer -R211- in the luggage compartment floor, 0K4/in the rear luggage compartment, 0K3
Digital Sound System Control Module -J525- in luggage compartment on left rear side
Information Electronics Control Module 1 -J794- behind the glove compartment

Courtesy of AUDI OF AMERICA, LLC

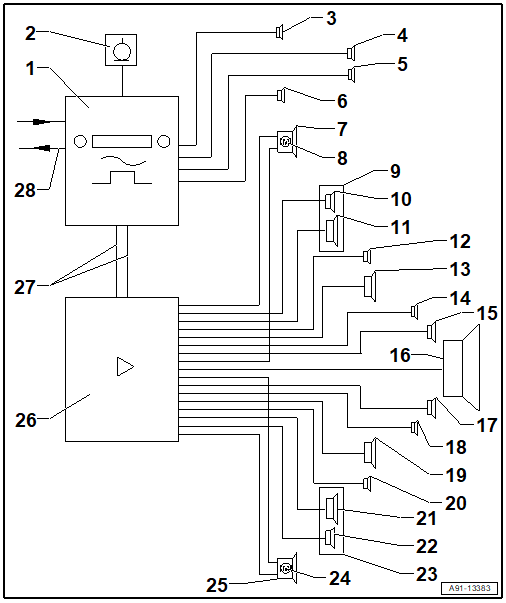

Information Electronics Control Module 1 -J794- Behind the Glove Compartment
Interior Microphone -R74- in Front Roof Module -WX3-
Left Front Treble Speaker 2 -R220- in the Upper A-Pillar
Left Rear Treble Speaker 2 -R217- in the Rear of the Roof
Right Rear Treble Speaker 2 -R218- in the Rear of the Roof
Right Front Treble Speaker 2 -R221- in the A-Pillar
Left Front Treble Speaker -R20- in the Instrument Panel on the Left Side
Left Front Treble Speaker Motor -V344- in Left Front Treble Speaker -R20-
Left Front Door Speaker -RX2- in Left Front Door
Left Front Midrange Speaker -R103- in Left Front Door
Left Front Bass Speaker -R21- in the Bottom of the Left Front Door
Left Rear Treble Speaker -R14- in the Left Rear Door Trim Panel
Left Rear Bass Speaker -R15- in the Bottom of the Left Rear Door
Center Speaker 2 -R219- in the Center of the Instrument Panel
Left Effects Speaker -R209- in Left D-Pillar / Rear Shelf
Subwoofer -R211- in Luggage Compartment Floor/in the Rear of Luggage Compartment
Right Effects Speaker -R210- in Right D-Pillar / Rear Shelf
Center Speaker -R208- in the Center Instrument Panel
Right Rear Bass Speaker -R17- in the Bottom of the Right Rear Door
Right Rear Treble Speaker -R16- in the Right Rear Door Trim Panel
Right Front Bass Speaker -R23- in the Bottom of the Right Front Door
Right Front Midrange Speaker -R104- in Right Front Door
Right Front Door Speaker -RX3- in Right Front Door
Right Front Treble Speaker Motor -V345- in Right Front Treble Speaker -R22-
Right Front Treble Speaker -R22- in Instrument Panel on the Right Side
Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side
Data Bus Wires for Audio Bus
MOST Bus
