Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), THROUGH MY 2020: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM , or LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

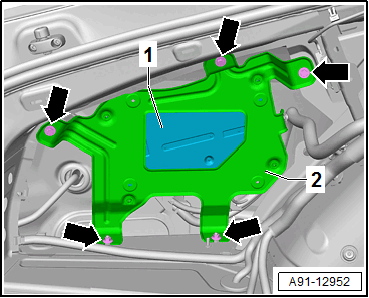

The bracket -2- with the Digital Sound System Control Module -J525- -1- must be removed first.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- from under the bracket -2-.

-- Remove the screws -arrows- from the top of the bracket -2-.

-- Pivot out the bracket -2- with the Digital Sound System Control Module -J525- -1-.

-- Release and disconnect the connectors from the Digital Sound System Control Module -J525- -1-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS 6223/9 -1- onto the MOST Bus connector -2-.

Courtesy of AUDI OF AMERICA, LLC

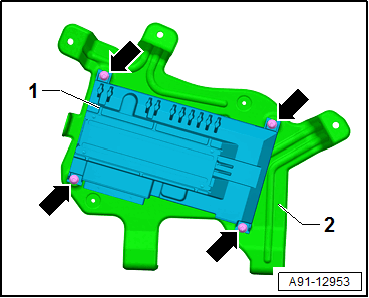

-- Remove the bolts -arrows- from the bracket -2- and remove the Digital Sound System Control Module -J525- -1- from the bracket.

Courtesy of AUDI OF AMERICA, LLC
