Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), FROM MY 2021: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM , or LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

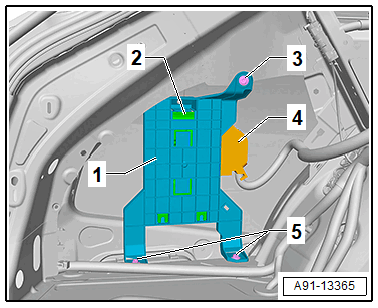

-- Remove the nuts -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3-.

-- Pivot out the bracket -1- with the Digital Sound System Control Module -J525- -2-.

-- Release and disconnect the connector -4- from the Digital Sound System Control Module -J525- -2-.

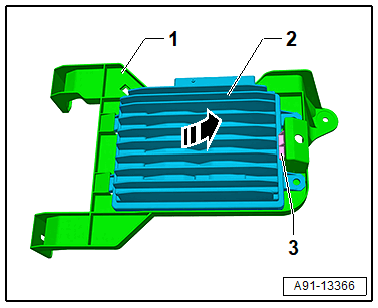

-- Release the retaining tab -3- on the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Digital Sound System Control Module -J525- -2- from bracket -1- in the direction of -arrow-.
