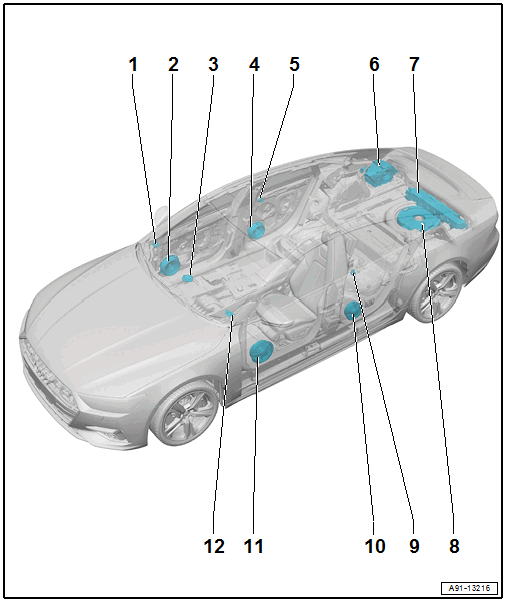

Component Location Overview - Sound System, Speaker, Standard Sound System (9VD)
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Right Front Treble Speaker -R22-
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD/9VS .
- Right Front Bass Speaker -R23-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 8RM/9VD .
- Center Speaker -R208-
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
- Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 8RM/9VD/9VS .
- Right Rear Treble Speaker -R16-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Subwoofer -R211-
- For non-hybrid vehicles M-HEV/high-voltage system, 0K0
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 9VD/9VS, NON-HYBRID VEHICLES M-HEV/HIGH-VOLTAGE SYSTEM (0K0) .
- Subwoofer -R211-
- For vehicles with high-voltage system, 0K3
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 9VD/9VS/8RF, VEHICLES WITH HIGH-VOLTAGE SYSTEM (0K3) .
- Subwoofer -R211-
- For hybrid vehicles M-HEV, 0K4
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 9VD/9VS, HYBRID VEHICLES M-HEV (0K4) .
- Left Rear Treble Speaker -R14-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Left Rear Bass Speaker -R15-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 8RM/9VD/9VS .
- Left Front Bass Speaker -R21-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 8RM/9VD .
- Left Front Treble Speaker -R20-
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD/9VS .
