Component Location Overview - Sound System, Speaker, Advanced Sound System (8RF)
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

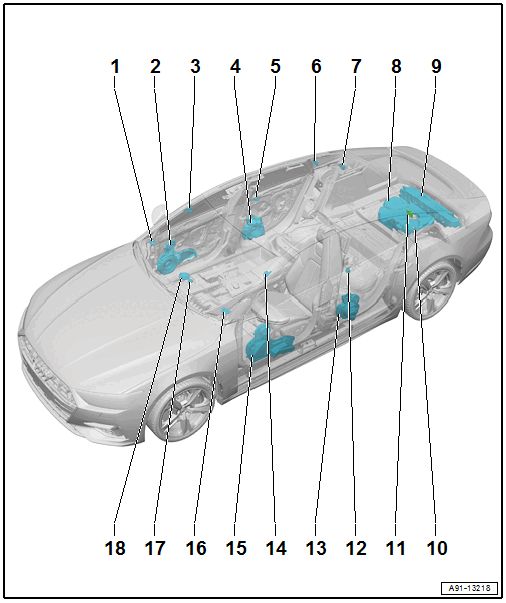

- Right Front Treble Speaker -R22-
- With Right Front Treble Speaker Motor -V345-
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKERS -R20- / -R22- AND LEFT AND RIGHT FRONT TREBLE SPEAKER MOTORS -V344- / -V345-, REMOVING AND INSTALLING, 8RF .
- Right Front Door Speaker -RX3-
- Right Front Bass Speaker -R23-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Right Front Midrange Speaker -R104-
- Removing and Installing. Refer to Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING .
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Right Front Midrange Speaker 2 -R277-
- For vehicles through MY 2020
- Removing and Installing. Refer to Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, REMOVING AND INSTALLING .
- Right Front Treble Speaker 2 -R221-
- For vehicles from MY 2021
- Removing and Installing. Refer to Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING .
- Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 8RF .
- Right Rear Treble Speaker -R16-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Right Rear Midrange Speaker 2 -R340-
- For vehicles through MY 2020
- Removing and Installing. Refer to Left Rear Midrange Speaker 2 -R341- /Right Rear Midrange Speaker 2 -R340-, REMOVING AND INSTALLING .
- Right Rear Treble Speaker 2 -R218-
- For vehicles from MY 2021
- Removing and Installing. Refer to Left Rear Treble Speaker 2 -R217- /Right Rear Treble Speaker 2 -R218-, REMOVING AND INSTALLING .
- Right Effects Speaker -R210-
- Removing and Installing. Refer to the appropriate service information .
- Subwoofer -R211-
- For hybrid vehicles M-HEV, 0K4
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 8RF, HYBRID VEHICLES M-HEV (0K4) .
- Subwoofer -R211-
- For vehicles with high-voltage system, 0K3
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 9VD/9VS/8RF, VEHICLES WITH HIGH-VOLTAGE SYSTEM (0K3) .
- Left Effects Speaker -R209-
- Removing and Installing. Refer to the appropriate service information .
- Left Rear Midrange Speaker 2 -R341-
- For vehicles through MY 2020
- Removing and Installing. Refer to Left Rear Midrange Speaker 2 -R341- /Right Rear Midrange Speaker 2 -R340-, REMOVING AND INSTALLING .
- Left Rear Treble Speaker 2 -R217-
- For vehicles from MY 2021
- Removing and Installing. Refer to Left Rear Treble Speaker 2 -R217- /Right Rear Treble Speaker 2 -R218-, REMOVING AND INSTALLING .
- Left Rear Treble Speaker -R14-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Left Rear Bass Speaker -R15-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 8RF .
- Left Front Midrange Speaker 2 -R276-
- For vehicles through MY 2020
- Removing and Installing. Refer to Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, REMOVING AND INSTALLING .
- Left Front Treble Speaker 2 -R220-
- For vehicles from MY 2021
- Removing and Installing. Refer to Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING .
- Left Front Door Speaker -RX2-
- Left Front Bass Speaker -R21-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Left Front Midrange Speaker -R103-
- Removing and Installing. Refer to Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING .
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Left Front Treble Speaker -R20-
- With Left Front Treble Speaker Motor -V344-
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKERS -R20- / -R22- AND LEFT AND RIGHT FRONT TREBLE SPEAKER MOTORS -V344- / -V345-, REMOVING AND INSTALLING, 8RF .
- Center Speaker 2 -R219-
- Removing and Installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING .
- Center Speaker -R208-
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
