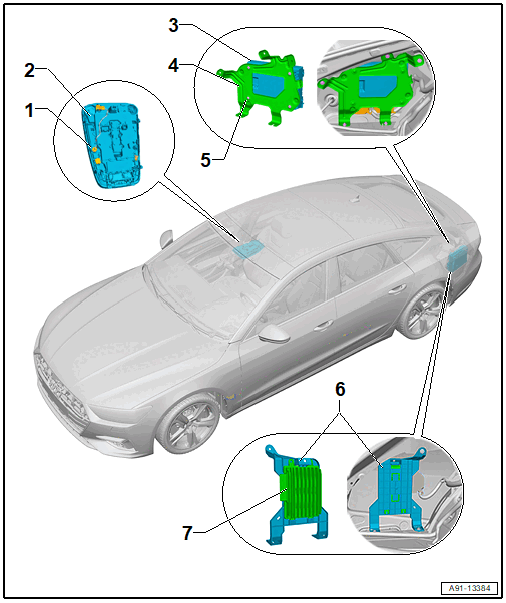

Component Location Overview - Sound System, Microphone Amplifier, Vehicles From My 2021
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Interior Microphone -R74-
- Removing and Installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- For vehicles with advanced sound system, 8RF
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, ADVANCED SOUND SYSTEM (8RF), FROM MY 2021 .
- Bracket
- For vehicles with advanced sound system, 8RF
- Bolt; quantity: 3
- Nut; quantity: 2
- 5 Nm
- Bolt
- For vehicles with advanced sound system, 8RF
- Quantity: 4
- 6 Nm
- Bracket
- For vehicles with premium sound system, 9VS
- Bolt, quantity: 1
- Nut; quantity: 2
- 5 Nm
- Digital Sound System Control Module -J525-
- For vehicles with premium sound system, 9VS
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), FROM MY 2021 .
