Overview - Mobile Online Services, From My 2021
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The mobile online services are based on the eCall and bCall and the Control Module for Emergency Call Module and Communication Unit -J949-.
The Control Module for Emergency Call Module and Communication Unit -J949- is safeguarded against a crash by being installed in the luggage compartment. The Control Module for Emergency Call Module and Communication Unit -J949- contains an emergency call module and a compass module. A separate SIM card is installed for the emergency call function.

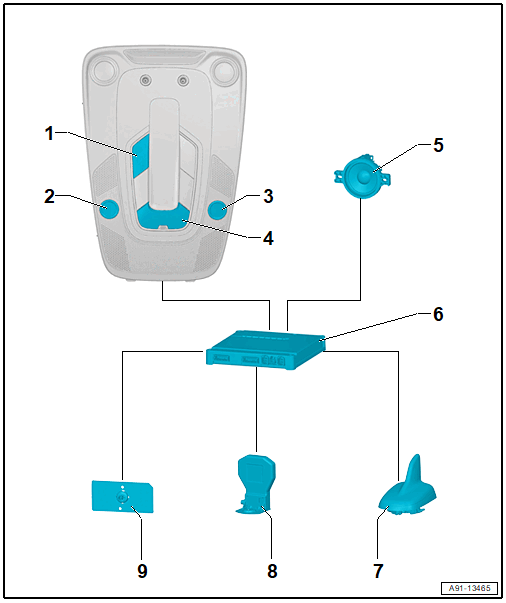

- Roadside Assistance Button -E275-
- Right Front Microphone -R141-
- Left Front Microphone -R140-
- Emergency Call Button -E276-
- Emergency Call Module Speaker -R335- in the Driver Side Footwell Cover
- Control Module for Emergency Call Module and Communication Unit -J949- at the Front of the Luggage Compartment in the Rack
- GPS Antenna -R50- and Emergency Call Module Antenna 2 -R322- in the Roof Antenna -R216-
- Emergency Call Module Antenna -R263- Under the Rear Bumper Cover on the Right Side
- Emergency Call Module Antenna 3 -R323- on the Rear Bumper Cover on the Outside Right
