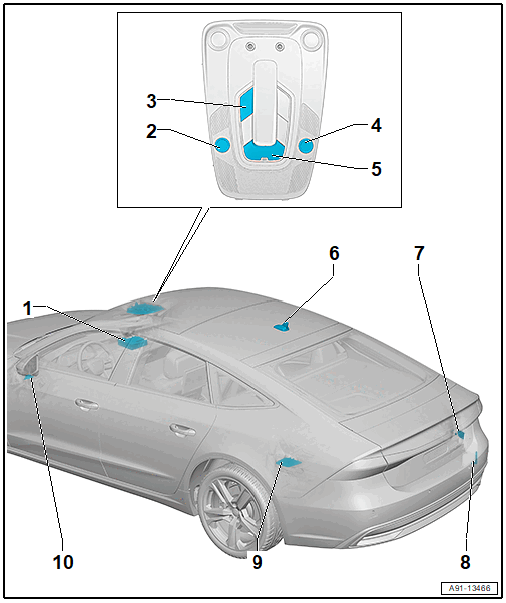

Component Location Overview - Mobile Online Services, From My 2021
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Roadside Assistance Button -E275-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Emergency Call Button -E276-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- GPS Antenna -R50- and Emergency Call Module Antenna 2 -R322-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna 3 -R323-
- On the rear bumper cover on the outside right
- Removing and Installing. Refer to OUTSIDE RIGHT BUMPER ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Under the rear bumper cover on the right side
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- At the front of the luggage compartment in the rack
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING, WITH CONNECT PLUS (IV1 THROUGH IV9 OR JE0 THROUGH JE6), FROM MY 2021 .
- Emergency Call Module Speaker -R335-
- In the driver side footwell cover
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
