Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING, 4-SPOKE STEERING WHEEL: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

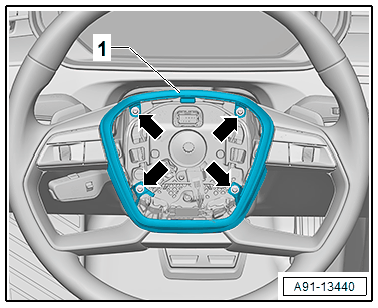

-- Remove the bolts -arrows-.
-- Remove the trim -1- from the steering wheel.

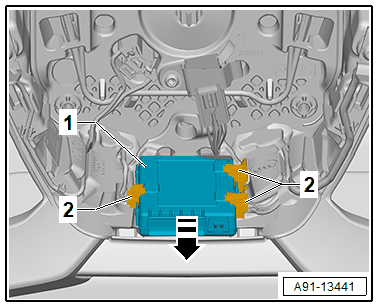

-- Remove the Steering Wheel Touch Recognition Control Module -J1158- -1- out of the retainer in the steering wheel -arrow-, at the same time pay attention to the wires.
-- Release and disconnect the connectors -2-.
