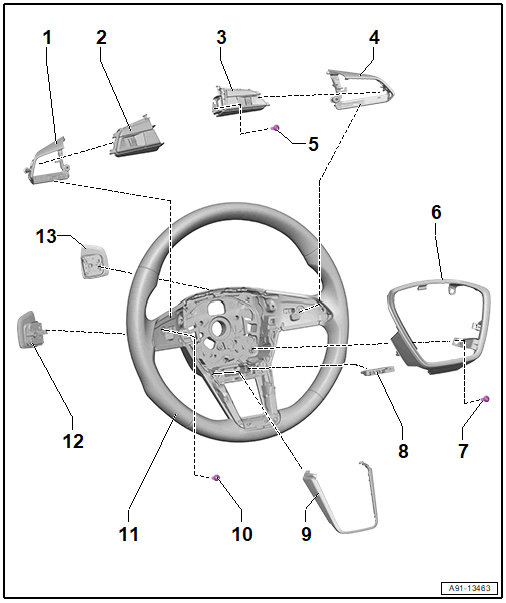

Overview - MULTIFUNCTION Steering Wheel, 3-Spoke Steering Wheel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Trim
- Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
- Trim
- Bolt
- Quantity: 1 on each side
- For Left Multifunction Buttons on Steering Wheel - E440- /Right Multifunction Buttons on Steering Wheel -E441- to the trim
- 2 Nm
- Trim
- Bolt
- Quantity: 4
- 2 Nm
- Steering Wheel Touch Recognition Control Module - J1158-
- Removing and Installing. Refer to Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING, 3-SPOKE STEERING WHEEL .
- Trim
- Bolt
- Quantity: 1 on each side
- For the Tiptronic Upshift Button -E479- /Tiptronic Downshift Button -E480- on the steering wheel
- 1 Nm
- 3-Spoke Steering Wheel
- Tiptronic Downshift Button -E480-
- Removing and Installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
- Tiptronic Upshift Button -E479-
- Removing and Installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
