Overview - Infotainment System, From My 2021

On the Infotainment system, the following functions are integrated in the Information Electronics Control Module 1 -J794- :

• Information Electronics Control Module 1 -J794- behind the glove compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685-, 8.8/10.1 inch display in the center of the instrument panel
• Front Information Display Control Head 2 -J1060-, 8.6 inch display in the front center console
• Instrument Cluster Control Module -J285-, Display in Instrument Cluster
• USB Distributor -R293- in the front center console storage compartment, two USB ports for data and charging, UF7
• Sound System, Basic Sound System, 8RM
• Bluetooth Hands-Free Calling, 9ZX
• Voice recognition system

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• DVD Player -R7- in the glove compartment, 7D5
• USB Connection 1 -U41- in rear center console, two USB ports for data and charging, UF8
• Digital Sound System Control Module -J525- on the left rear side of the luggage compartment, 9VS/8RF
• Sound systems: Audi sound system, 9VD/premium sound system Bang & Olufsen, 9VS/advanced sound system Bang & Olufsen, 8RF
• MMI Navigation plus navigation system with MMI touch response, 7UG
• TV Tuner -R78- in the luggage compartment center rear/right rear, QU1/QV1/Q0A/Q0B
• TV Card Reader -R204- in the luggage compartment center rear/right rear, Q0A/Q0B
• Audi phone box, 9ZE/Audi phone box light, 9ZV
• Auxiliary Display Control Head 1 -E857-, QW4/QW5. With Wireless Control Head 1 -E859- in the rear center armrest, Smart Control (SCON), QW5

Courtesy of AUDI OF AMERICA, LLC

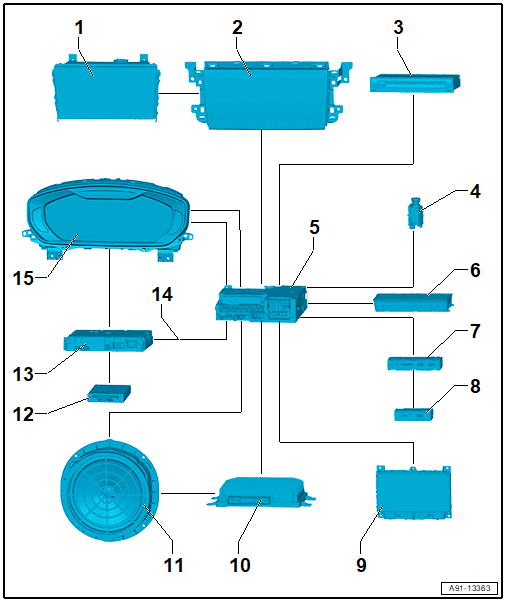

1. Front Information Display Control Head 2 -J1060-, in the Front Center Console
2. Front Information Display Control Head -J685- in Center of the Instrument Panel
3. DVD Player -R7- in Glove Compartment
4. Driver Volume Control -E67-
5. Information Electronics Control Module 1 -J794- Behind the Glove Compartment
6. Mobile Device Charger 1 -J1146- in the Front Center Console Storage Compartment
7. USB Distributor -R293- in the Front Center Console Storage Compartment
8. USB Connection 1 -U41- in the Rear Center Console
9. Auxiliary Display Control Head 1 -E857- in the Rear Center Armrest
   • With Wireless Control Head 1 -E859-, QW5
10. Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side
11. Sound Systems
12. TV Card Reader -R204-
    • In the center of the rear luggage compartment, for vehicles without a high-voltage system, 0K0/0K4
    • In the rear luggage compartment on the right, for vehicle with high-voltage system, 0K3
13. TV Tuner -R78-
    • In the center of the rear luggage compartment, for vehicles without a high-voltage system, 0K0/0K4
    • In the rear luggage compartment on the right, for vehicle with high-voltage system, 0K3
14. MOST Bus
15. Instrument Cluster Control Module -J285-
