Front Information Display Control Head -J685-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the instrument panel center decorative trim on the front passenger side. Refer to OVERVIEW - INSTRUMENT PANEL .

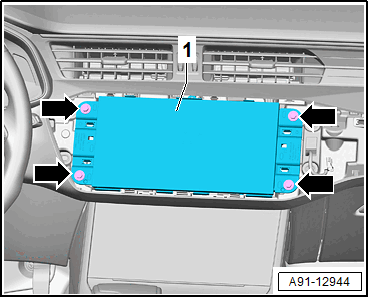

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.
-- Release and disconnect the connectors from the Front Information Display Control Head -J685- -1-.
