Driver Volume Control -E67-, REMOVING AND INSTALLING: Notes
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

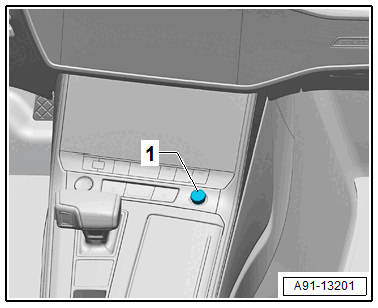

The Driver Volume Control -E67- -1- is installed in the front center console display cover.
If the Driver Volume Control -E67- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 2+) or 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0693 - Driver Volume Control -E67-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
