Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console insert. Refer to OVERVIEW - CENTER CONSOLE .
The Near Field Communication Control Module 2 -J1170- is clipped into the center console.

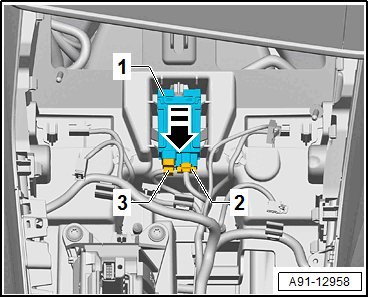

-- Remove the Near Field Communication Control Module 2 -J1170- -1- from the center console in the direction of -arrow-.
-- Release and disconnect the connectors -2 and 3- from the Near Field Communication Control Module 2 -J1170- -1-.
