LTE Antenna 2 - R306-, Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

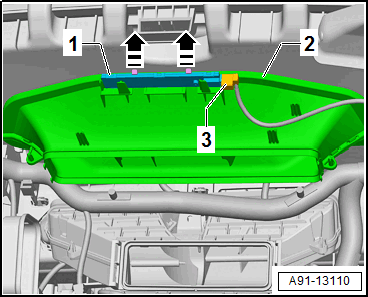

-- Release and disconnect the connector -3- from the LTE Antenna 2 -R306- -1-.
-- Remove the LTE Antenna 2 -R306- -1- from the air duct intermediate piece/defroster vent -2- in the direction of -arrows-.
LTE Antenna 2 -R306-, Installing
Install in reverse order of removal.
