GPS Antenna Splitter -R110-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the sill panel strip. Refer to SILL PANEL, REMOVING AND INSTALLING .

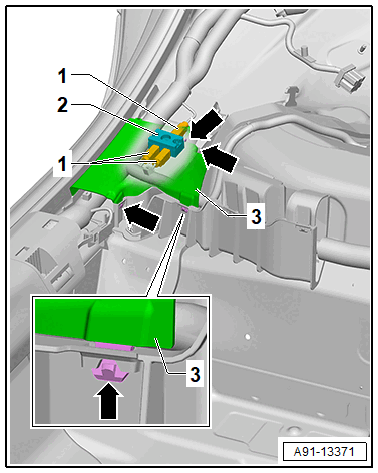

-- Fold the carpet to the side in the area of the wiring guide cover -3-.
-- Release the retaining tabs -arrows- at the wiring guide cover -3-.
-- Fold up the wiring guide cover -3-.
-- Release and disconnect the antenna wires -1- from the GPS Antenna Splitter -R110- -2-.
-- Remove the GPS Antenna Splitter -R110- -2-.
